Difference between S1000 and S1000+

Discussion in 'Inspire 1 Discussion' started by ___1___, Dec 24, 2015.

  1. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    Does anyone know how to tell the difference between the S1000 vs S1000+ ?

  2. Tj_

    Tj_

    Joined:
    Jul 16, 2015
    Messages:
    134
    Likes Received:
    38
    Location:
    Cleveland ROCKS!!!
    The power distribution system is different.

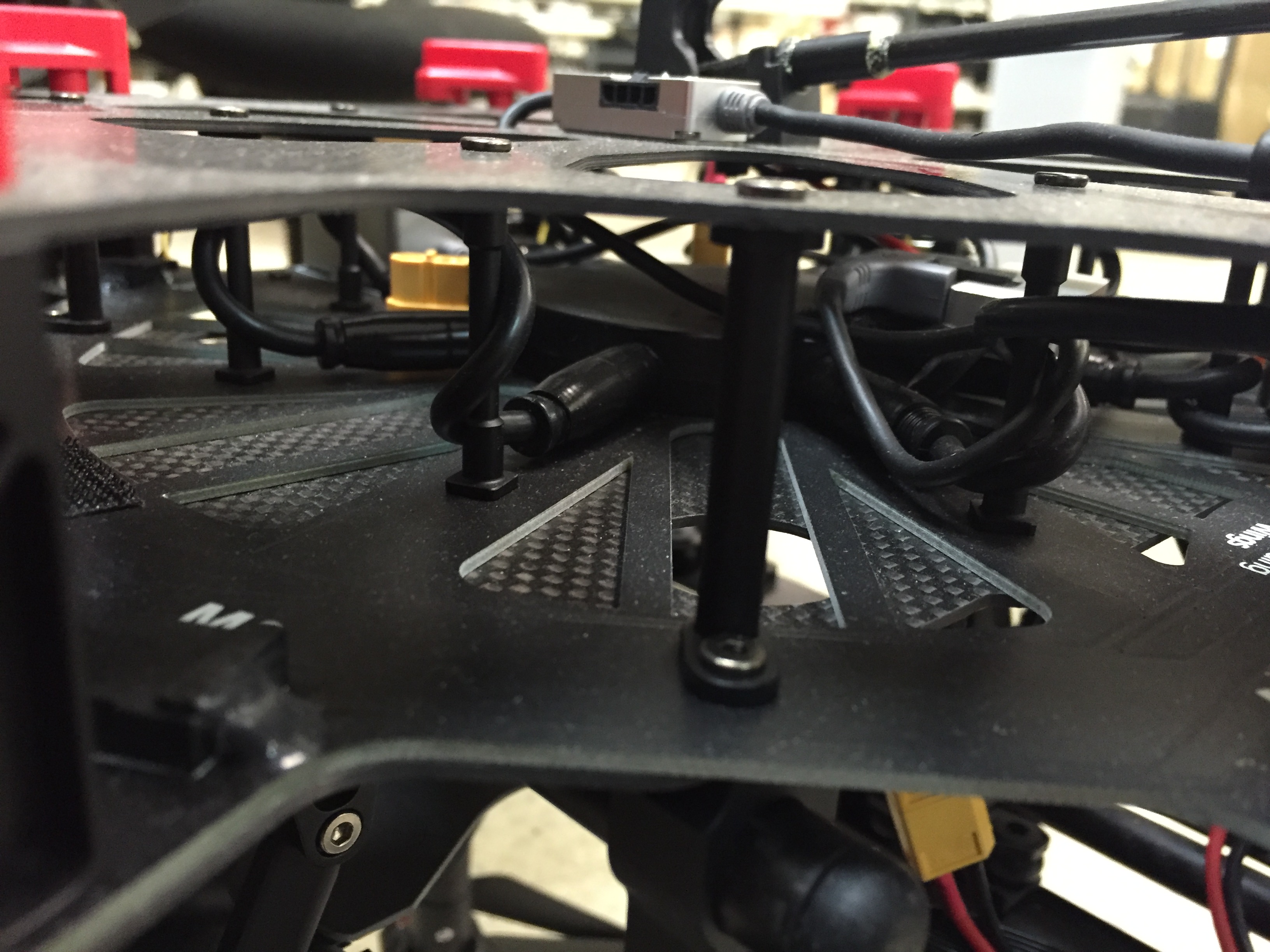

    S1000 [​IMG]

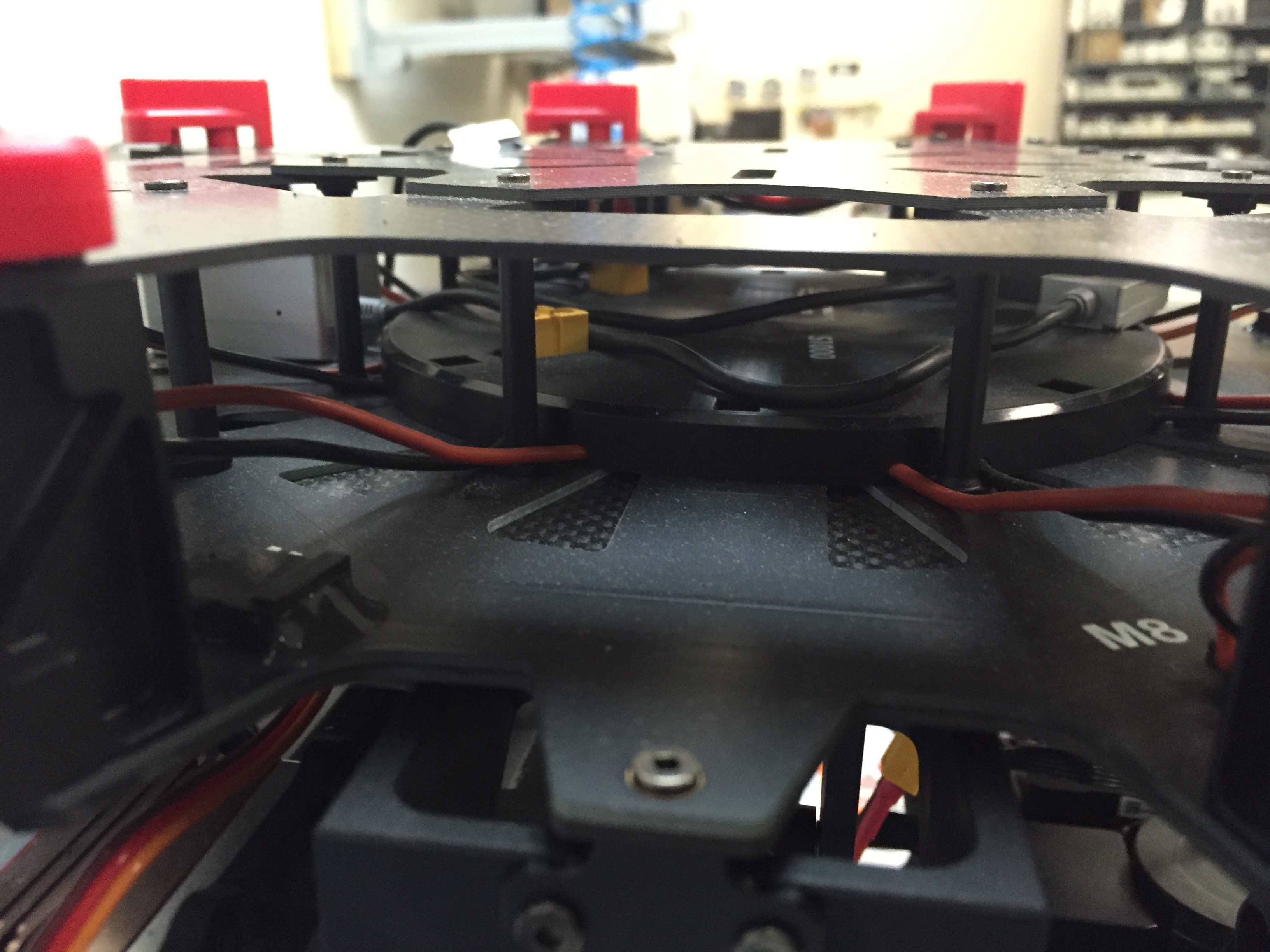

    S1000+
    [​IMG]

  3. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    Thank you! You saved me a big headache. so just to be clear, The S1000+ has the larger 'circle' on the power distribution ?

  4. Tj_

    Tj_

    Joined:
    Jul 16, 2015
    Messages:
    134
    Likes Received:
    38
    Location:
    Cleveland ROCKS!!!
    Yes but you won't really see the circle because it's part of an assembly.

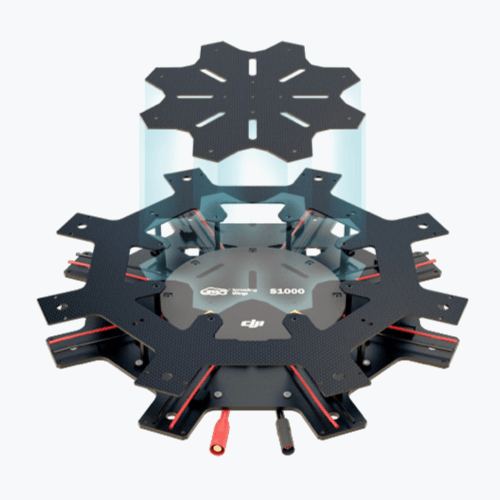

    This is another pic of the S1000+ assembly
    [​IMG]

  5. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    I can see it clearly here on the two

  6. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25

    Attached Files:

    • 888.JPG
      File size:
      1.2 MB
      Views:
      9
    • 999.JPG
      File size:
      1.1 MB
      Views:
      9
  7. skylabimaging

    Joined:
    Mar 17, 2015
    Messages:
    561
    Likes Received:
    247
    Location:
    Seattle, Washington
    Also....the arm to frame mounts are cnc anodized. The motor mounting ring is cnc'd. The upper plate is one piece I belive. And the bottom carbon plate doesn't support the pdb on motors 1 and 2 and 5 and 6.

  8. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    Thanks for your help.. Do you fly an S1000? I have three and never flown so maybe you can help me.. :)

  9. huppe

    Joined:
    Jan 11, 2015
    Messages:
    899
    Likes Received:
    317
    3? and never flew one?What is wrong with you:rolleyes::rolleyes:.I wish I had one.Fix this asap and go out.;);)

  10. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    I have so much work, I don't have the time... I agree totally unacceptable! It an S900, S1000 and S1000+

  11. skylabimaging

    Joined:
    Mar 17, 2015
    Messages:
    561
    Likes Received:
    247
    Location:
    Seattle, Washington
    Yeah I fly an s1000+

  12. Tj_

    Tj_

    Joined:
    Jul 16, 2015
    Messages:
    134
    Likes Received:
    38
    Location:
    Cleveland ROCKS!!!
    I'm jealous of both you two... I only have an inspire 1 and phantoms.
    I'll gladly take any of the S series models you don't want! ;)

  13. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    OK great, I may ask you a few things here if that is OK.

  14. skylabimaging

    Joined:
    Mar 17, 2015
    Messages:
    561
    Likes Received:
    247
    Location:
    Seattle, Washington
    sure thing

  15. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    OK so I have an S900 set up.. I was getting the beep.....beep....beep.....beep after an interrupted firmware upgrade. I reset the firmware by jumping the F1 and F2 pins and selected the correct configuration via the a2 assistant. basic tab, then aircraft and top row 4th one. Now when I move the controls on the remote I don't see them moving in the a2 assistant.

    I have the remote binded b/c the LED on the A2 flight controller turns green when I turn on the remote....

    #15 ___1___, Dec 29, 2015
    Last edited: Dec 29, 2015
  16. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    Figured it out...... :) Now I just need to figure out how to map the landing gear...

  17. ___1___

    Joined:
    Jul 22, 2015
    Messages:
    154
    Likes Received:
    25
    you there?
